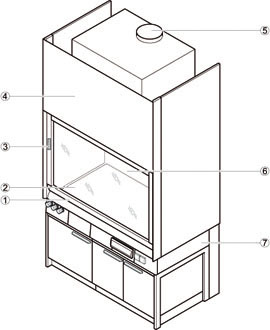

Special Application Fume Cupboard

  1. Sash with handle
  2. Work surface
  3. FAZ or AC control panel
  4. Removable fascia panel
  5. Extract air spigot integrated in scrubber for harmful gases
  6. Baffle
  7. H-frame with pushed in underbench unit with support and
    service panels

Intended Uses

  • Protective device for the user, tested in acc. with DIN 12924, part 2
  • Suitable for open, thermal processes of breaking down chemicals with aggressive media such as e. g. sulphuric acid, perchloric acid, hydrofluoric acid or aqua regia
  • The construction of the fume cupboard and the materials of the inner lining of the internal workspace determine which aggressive media the device can be used for
  • Extraction of fumes, aerosols and dust from the internal workspace to prevent dangerous amounts of pollutants from escaping into the laboratory
  • To prevent the formation of dangerous potentially explosive atmospheres in the internal workspace
  • Protection from splashes of hazardous substances in the internal workspace
  • Protection from flying particles, bodies or parts escaping from the internal workspace
  • Fume cupboards constructed in acc. with DIN 12924, part 2, are normally not permitted for use with radioactive substances or microorganisms

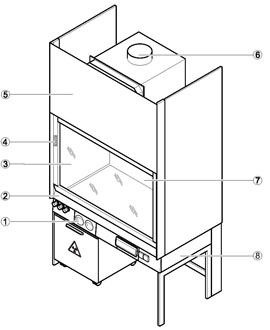

Radio-Isotape Fume Cupboard

  1. Differential pressure gauge
  2. Sash with handle
  3. Worktop
  4. FAZ or AC control panel
  5. Removable fascia panel
  6. Extract air spigot integrated in filter housing
  7. Baffle with scaffold points
  8. H-frame with pushed in underbench unit with support and service panel

Intended Uses

  • Protective device for the user, tested in acc. with DIN 25466
  • Extraction during work with radioactive substances if increased requirements for radiation protection apply
  • Protection from incorporation, contamination and external radiation exposure
  • Extraction of fumes, aerosols and dust from the internal workspace to prevent dangerous amounts of pollutants from escaping into the laboratory
  • To prevent the formation of dangerous potentially explosive atmospheres in the internal workspace
  • Protection from splashes of hazardous substances in the internal workspace
  • Protection from flying particles, bodies or parts escaping from the internal workspace
  • Fume cupboards constructed in acc. with DIN 25466 are normally not permitted for use with microorganisms
  • Not suitable for openly breaking down chemicals

Filter Fume Cupboard

  1. Differential pressure gauge
  2. Sash with handle and horizontal sashes
  3. Worktop
  4. FAZ or AC control panel
  5. Removable fascia panel
  6. Extract manifold
  7. Baffle with scaffold points
  8. H-frame with pushed in underbench unit with support and service panel

Intended Uses

  • Before the extract air from the internal workspace is released into the environment, it is cleaned by a filter unit
