Bench Mounted Fume Cupboards

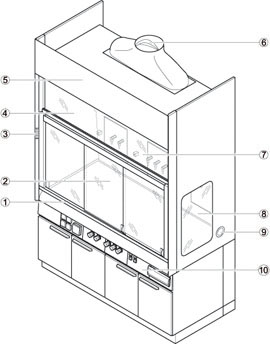

Bench Mounted Fume Cupboard

  1. Sash with handle and horizontal sashes
  2. Work surface
  3. FAZ or AC control panel
  4. Upper sash window
  5. Removable fascia panel
  6. Extract manifold
  7. Baffle with service modules
  8. Glass pane in the side wall
  9. Material lock
  10. Self-supporting underbench unit with support and service panels

Intended Uses

  • Protective device for the user, tested in acc. with EN 14175
  • Extraction of fumes, aerosols and dust from the internal workspace to prevent dangerous amounts of
    pollutants from escaping into the laboratory
  • To prevent the formation of dangerous potentially explosive atmospheres in the internal workspace
  • Protection from splashes of hazardous substances
  • Protection from flying particles, bodies or parts escaping from the internal workspace
  • General fume cupboards constructed in acc. with EN 14175 are normally not suited for use with radioactive substances or microorganisms.
  • Not suitable for openly breaking down chemicals
  • Service outlets in the rear panel of the internal workspace
  • Control units located externally at the support

Options

  • Low ceiling bench-mounted fume cupboard
  • Secuflow bench-mounted fume cupboard
  • Secuflow low ceiling bench-mounted fume cupboard

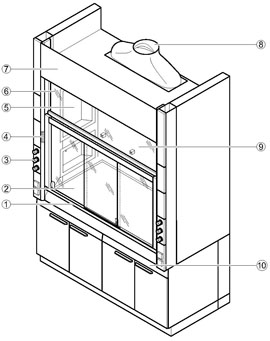

Bench Mounted Fume Cupboard with side installation

  1. Sash with handle and horizontal sashes
  2. Work surface
  3. Service panel
  4. FAZ or AC control panel
  5. Service modules in the side panel of the fume
    cupboard
  6. Upper sash window
  7. Removable fascia panel
  8. Extract air collection duct
  9. Baffle with scaffold points
  10. Self-supporting underbench unit

Intended Uses

  • Protective device for the user, tested in acc. with EN 14175
  • Extraction of fumes, aerosols and dust from the internal workspace to prevent dangerous amounts of
    pollutants from escaping into the laboratory
  • To prevent the formation of dangerous potentially explosive atmospheres in the internal workspace
  • Protection from splashes of hazardous substances
  • Protection from flying particles, bodies or parts escaping from the internal workspace
  • General fume cupboards constructed in acc. with EN 14175 are normally not suited for use with radioactive substances or microorganisms.
  • Not suitable for openly breaking down chemicals
  • Service outlets in the service modules of the side panels of the internal workspace
  • Control units located externally at the support

Options

  • Low ceiling bench-mounted fume cupboard with side installation
  • Secuflow bench-mounted fume cupboard with side installation
  • Secuflow low ceiling bench-mounted fume cupboard with side installation
  • Bench-mounted fume cupboard with side installation for work performed while seated
  • Secuflow bench-mounted fume cupboard with side installation for work performed while seated
